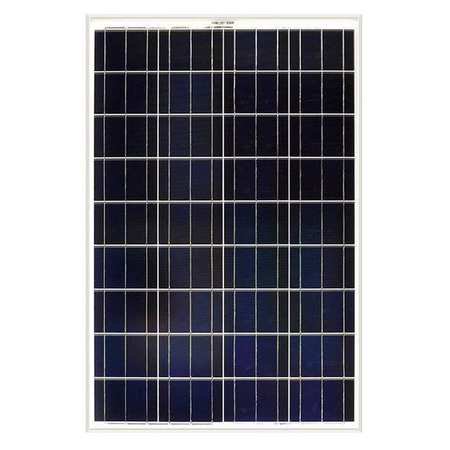

Solar Panel, Grape Solar, GS-STAR-100W Main Features
Product feature
Positive and Negative leads equipped with MC4 connectors
Polycrystalline panel with anodized aluminum frames and tempered glass for outdoor use and superior performance
Two diode junction box for enhanced performance
Outstanding electrical performance under high temperature and weak light environments
Can withstand snow and wind loads up to 50 lbs./ft2
Depth: 1-3/8″
Height: 40-1/8″
Item: Solar Panel
Width: 26-3/8″
Weight: 19.70 lb.
Operating Temp. Range: -40 Degrees to 185 Degrees F
Standards: CE
Frame: Yes
Connector: MC4
Cable Length: 35-3/8″
Green Environmental Attribute: Renewable Energy Source
Nominal Output Power: 100W
Cell Type: Polycrystalline
Power Tolerance: 0% to +6%
Open Circuit Voltage: 21.9VDC
Short Circuit Current: 6.13A
Number of Cells: 36
Module Efficiency: 14.6%
Max. Power Point Voltage: 18.0VDC
Max. Power Point Current: 5.56A
Max. System Voltage: 600VDC (UL)
